Building and Deploying SOA Composite Applications using ANT

The idea of this post is share the file structure we are currently using in our projects to store SOA composite applications. This structure has the aim to allow metadata sharing using MDS and easy migration between environments (developing, test, production) using ANT scripts and configuration plan together. The scripts presented below was created before SOA Suite 11.1.1.3 release, for a project environment where Human Tasks aren't necessary, so deployment of Human Task forms are not supported.

Folder structure:

sca
 |-- bin
 |    |-- .adf
 |    |     |-- META-INF
 |    |     |    |-- adf-config.xml.seed.local
 |    |     |    |-- adf-config.xml.seed.server
 |    |-- template
 |    |     |-- build.xml
 |    |     |-- build-customize.xml
 |    |     |-- local_build.properties
 |    |-- build_ENV.properties
 |    |-- custom-build.xml
 |    |-- custom-build-common.xml
 |    |-- developer_build.properties
 |    |-- global_build.properties
 |-- projects
 |    |-- <project 1>
 |    |      |-- build.xml
 |    |      |-- build-customize.xml (when needed)
 |    |      |-- local_build.properties (when needed)
 |    |      |-- <project directories and files>
 |    |-- <project 2>
 |    |      |-- build.xml
 |    |      |-- build-customize.xml (when needed)
 |    |      |-- local_build.properties (when needed)
 |    |      |-- <project directories and files>
 |-- shared
 |    |-- mds
 |    |    |-- apps
 |    |    |    |-- <project name>
 |    |    |    |      |-- fault-policies
 |    |    |    |      |    |-- <fault policies files>
 |    |    |    |      |-- xsd
 |    |    |    |      |    |-- <directories and XSD files>
 |    |-- build.xml
 |    |-- local_build.properties
 |    |-- shared.jpr

Folders/Files description:

• sca: root folder where all project data and scripts are stored
• bin: this folder stores all files necessary to build and deploy SOA applications
• .adf: this directory structure is the same that exists on Application directories created by jDeveloper.
• META-INF: template configuration files that contains the information necessary to indicate to the build script where the shared repository (MDS) is located. A copy of one of this file will be created by ANT build script during deployment process and its internal tokens (those started by @) will be replaced by environment specific information from build_ENV.properties (see below).
• adf-config.xml.seed.local: file used as template when using local MDS (when mds.local.pat and mds.local.partition properties are uncommented on developer_build.properties). You don’t need to make changes on it.
• adf-config.xml.seed.server: file used as template when using server MDS (when mds.local.pat and mds.local.partition properties are commented on developer_build.properties). You don’t need to make changes on it.
• template: folder with files that may be copied to the project root directories.
• build.xml: file used to build and deploy your SOA project. This file must be copied from template folder to your project root directory and can be called either inside jDeveloper or thru command line. You don’t need to make changes on it.
• build-customize.xml: file used to customize the project configuration plan according the project needs. This file must be copied from template folder to your project root directory only when customization is needed. You may define, at customize_config_plan target, as many token replacement rules as needed to dynamically customize your project configuration plan with information from properties files. You can use any properties from all build properties files.
• local_build.properties: this file allows you to create local properties to use only in a specific project. Copy this file from template folder to your project root directory only when local properties are needed.
• build_ENV.properties: this file allows you to define properties specific for each environment. Create a file for each environment, replacing ENV by the environment name (i.e.: build_dev.properties, build_dit.properties, build_sit.properties, and so on). Set within each file all properties that changes when you deploy projects in different environments.
• custom-build.xml: this file is used to filter the common built tasks that will be presented when the build.xml is used within jDeveloper. You don’t need to make changes on it.
• custom-build-common.xml: this file contain common tasks to build, deploy and undeploy SOA Projects. You don’t need to make changes on it.
• developer_build.properties: this file allows you to define properties related to the local developer environment. Set the priperties accordingly.
• global_build.properties: this file allows you to define global properties to use in all of your projects. Use this file to define properties that will be shared by more than one process, avoiding redundance in local_build.properties files.
• projects: this is the location where you will place all of your SOA Project files, using the same folder structure as created by jDeveloper.
• shared: this directory contains a special project that we use to share metadata (XSDs, WSDLs, Fault-Policies, etc) across multiple SOA projects using MDS.
• mds/apps/: this is the default directory where we can place all files to be shared. The internal structure of this directory may be defined as needed. All the content of this folder will be deployed to the MDS server. Two folders were already defined: xsd folder, to store shared XSDs, and fault-policies folder, to store shared policies.
• build.xml: this file contains tasks to build, deploy and undeploy shared metadata. You don’t need to make changes on it.
• local_build.properties: this file allows you to create local properties to use only in shared metadata deploy.
• shared.jpr: file used to open the shared project within your application in jDeveloper.

Usage:

•  For each new SOA Project created, a build.xml file must be copied from the /sca/bin/template folder to the main project folder. build-customize.xml and local_build.properties files must be copied if customization is needed (see below);
•  The ANT scripts expects that a configPlan has been created for all projects. This config plan must have the same composite name plus a "_configPlan" suffix and will be used as a template to generate the environment specific configPlans.
• To create the config plan, right click on the composite.xml file and select "Generate Config Plan". Accept the default name.
• Change configuration plan sensitive data by tokens to be replaced during build and deploy (see below).
• ANT scripts uses a build-customize.xml with search/replace commands to generate a configPlan to a specific environment. If your project needs any kind of environment specific configuration, copy this file from the /sca/bin/template folder to the main project folder and update it with all necessary search/replace commands.
• create a search/replace for each token created in the config plan
• If you have any project specific property you want to use during the replacement, copy the local_build.properties file from the /sca/bin/template folder to the main project folder and add all necessary properties.

Additional comments:

• This sca folder and all sub folders can be managed using any kind of Source Control System, like TFS, CVS or SVN.
• Currently we aren't storing SOA Applications in our file structure. Each developer create a local empty SOA aplication, get the entire file structure from the source control and open the SOA Projects from the /sca/projects folder directly.
• When a new project is being created in jDeveloper, it's important to take care that the project folder is created within the /sca/projects folder.
• Take care of update the configuration plan every time you change the project and new sensitive data must be customized during deployment process (common examples of sensitive data are hostname, port and partition name of other composites used as reference or hostname and port of external services).

To download a clean folder structure to use in your project, click here.

To download a sample folder structure with 2 SOA projects, click here.

BUILD FAILED - LIB version problem

Today, during a build and deploy of one of our SOA projects, we were facing the following problem:

Buildfile: C:\Oracle\Middleware\jdeveloper\bin\ant-sca-compile.xml

scac:
[scac] Validating composite "C:\JDeveloper\mywork\ApplicationTest\Hello\composite.xml"

BUILD FAILED
C:\Oracle\Middleware\jdeveloper\bin\ant-sca-compile.xml:236: Java returned: 1 Check log file : C:\JDeveloper\mywork\ApplicationTest\Hello\SCA-INF\classes\scac.log for errors

Total time: 4 seconds

And within the scac.log file the following message was shown:

Exception in thread "main" java.lang.NoSuchMethodError: oracle.fabric.composite.model.CompositeModel.getFolder()Ljava/lang/String;
at oracle.soa.scac.ValidateComposite.loadComposite(ValidateComposite.java:881)
at oracle.soa.scac.ValidateComposite.doValidation(ValidateComposite.java:567)
at oracle.soa.scac.ValidateComposite.run(ValidateComposite.java:156)
at oracle.soa.scac.ValidateComposite.main(ValidateComposite.java:141)

After some evaluation, we identified that this error is caused by a version incompatibility of the lib C:\Oracle\Middleware\jdeveloper\soa\modules\oracle.soa.fabric_11.1.1\fabric-runtime.jar.

But what caused the error if I did a clean install of the jDeveloper?

The answer is: when I installed the jDeveloper, my machine permissions caused that some installation files stay locked (including fabric-runtime.jar). This way, when I installed the SOA Composer plugin, this file couldn't be updated to the new version, necessary to build and deploy SOA Composite applications.

SOLUTION: make sure you have the right permissions during installation. If you are facing this problem, check if the fabric-runtime.jar lib file is locked, change its access permission and try to reinstall the SOA Composer plugin .

Generating custom logs with Log4J within Java Embedding activity

To generate custom logs within a BPEL process using a Java Embedding activity and Log4J do the following steps:

• Copy log4j-1.2.15.jar to <oss_home>/soa/modules/oracle.soa.ext_11.1.1 and execute ANT script in this directory. This will recreate the oracle.soa.ext.jar file adding the log4j lib to the classpath.
• Create a new folder for Log4j configuration and log files: <middleware_home>/config, for example
• add to this folder the configuration files (log4j.debug.xml and log4j.dtd, for example)
• set the log file name and path (<middleware_home>/config/customErrorLog.log, for example) in the log4j.debug.xml
• Change the startManagedServer script to point to Log4j configuration file: JAVA_OPTIONS="-Dlog4j.configuration=file:<middleware_home>/config/log4j.debug.xml”
• Restart the SOA managed server.

From a BPEL development perspective, what is necessary to do is:

• Import the log4j-1.2.15.jar to the project libs (right click in the project name and select “Project Properties”, go to “Libraries and Classpath” and add the jar file)
• Insert a Java Embedding activity
• In the BPEL source code, import the Logger class adding the code below before the “bpelx:exec” created for the Java Embedding component

<bpelx:exec import="org.apache.log4j.Logger">

• Edit the Java Embedding activity and insert the necessary log instructions like:

Logger logger = Logger.getLogger("myCustomLog");
logger.info(">>>> Message log for instance: " + getTitle());

To download the Log4j configuration files together with a Composite with a sample use of the log, click here.

Soa Suite 11g - Fault recovery

Using the Oracle SOA Suite's Infrastructure Management Java API, it's possible to query the BPEL Engine for faults and recover this faults programmatically using the following Facades:

• Locator: entry point to Facades API.
• BPELServiceEngine: allows to query for faults, get and set variables data and recovery faults.
• Fault: allows retrieve fault details information.
• FaultRecoveryActionTypeConstants: contains Action constants used to recover faults.

To develop the Java code, create a new Java project in jDeveloper and import the following libs:

• <middleware_home>/oracle_common/modules/oracle.fabriccommon_11.1.1/fabric-common.jar
• <middleware_home>/jdeveloper/soa/modules/oracle.soa.mgmt_11.1.1/soa-infra-mgmt.jar
• <middleware_home>/wlserver_10.3/server/lib/weblogic.jar
• <middleware_home>/jdeveloper/soa/modules/oracle.soa.fabric_11.1.1/oracle-soa-client-api.jar
• <middleware_home>/oracle_common/webservices/wsclient_extended.jar

The example below shows how to use the API to search for faults using filter, update variable data and do a Retry to recover the fault:

package br.inf.andrade.soasuite.faultRecovery;

import java.util.Hashtable;
import java.util.List;

import javax.naming.Context;

import oracle.soa.management.facade.Fault;
import oracle.soa.management.facade.FaultRecoveryActionTypeConstants;
import oracle.soa.management.facade.Locator;
import oracle.soa.management.facade.LocatorFactory;
import oracle.soa.management.facade.bpel.BPELServiceEngine;
import oracle.soa.management.util.FaultFilter;

public class FaultRecovery {

  private Locator locator = null;
  private BPELServiceEngine mBPELServiceEngine;

  public FaultRecovery() {
    locator = this.getLocator();
    try {
      mBPELServiceEngine =
          (BPELServiceEngine)locator.getServiceEngine(Locator.SE_BPEL);
    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  public Hashtable getJndiProps() {
    Hashtable jndiProps = new Hashtable();
    jndiProps.put(Context.PROVIDER_URL,
                  "t3://soaserver11gr1ps2:8001/soa-infra");
    jndiProps.put(Context.INITIAL_CONTEXT_FACTORY,
                  "weblogic.jndi.WLInitialContextFactory");
    jndiProps.put(Context.SECURITY_PRINCIPAL, "weblogic");
    jndiProps.put(Context.SECURITY_CREDENTIALS, "welcome1");
    jndiProps.put("dedicated.connection", "true");
    return jndiProps;
  }

  public Locator getLocator() {

    try {
      return LocatorFactory.createLocator(getJndiProps());
    } catch (Exception e) {
      e.printStackTrace();
    }
    return null;
  }

  public void recoverFaults() {
    try {
      System.out.println("Get Recoverable Faults");

      /*
       * SEARCH FOR FAULTS
       */

      //Set filter according desired criteria
      FaultFilter filter = new FaultFilter();
      //filter.setCompositeDN("default/FaultClient!1.0");
      //filter.setCompositeInstanceId("40001");
      //filter.setComponentName("FaultClientProcess");
      //filter.setComponentInstanceId("bpel:40001");
      //filter.setId("default/FaultClient!1.0*soa_911ae0fd-c5ca-44ae-922c-6641a4e7d51f/FaultClientProcess/40001-BpInv0-BpSeq0.3-3");
      //filter.setFaultName("{http://xmlns.oracle.com/FaultRecovery_jws/FaultGenerator/FaultGeneratorProcess}BusinessFault");
      //filter.setLike("%<code>0001%");
      filter.setRecoverable(true);

      //Get faults using defined filter
      List<fault> faultList = mBPELServiceEngine.getFaults(filter);
      for (Fault fault : faultList) {
        System.out.println("=============================================================================================================");
        System.out.println("         Composite DN: " +
                           fault.getCompositeDN().getStringDN());
        System.out.println("Composite Instance ID: " +
                           fault.getCompositeInstanceId());
        System.out.println("       Component Name: " +
                           fault.getComponentName());
        System.out.println("Component Instance ID: " +
                           fault.getComponentInstanceId());
        System.out.println("        Activity Name: " + fault.getLabel());
        System.out.println("             Fault ID: " + fault.getId());
        System.out.println("           Fault Name: " + fault.getName());
        System.out.println("     Recoverable flag: " + fault.isRecoverable());
        System.out.println("        Fault Message: " + fault.getMessage());

        //Get fault variables
        String[] variables = mBPELServiceEngine.getVariableNames(fault);
        System.out.println("+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+");
        System.out.println("Variables:");
        for (int i = 0; i < variables.length; i++) {
          System.out.println("* Name: " + variables[i]);
        }

        //Get operation input variable data, correct it and update the variable content
        System.out.println("+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+");
        System.out.println("Operation Input Variable Data:");
        String value =
          mBPELServiceEngine.getVariable(fault, "invokeFaultGenerator_process_InputVariable");
        System.out.println("Old value: " + value);
        value = value.replace("BusinessFault", "Any string");
        System.out.println("New value: " + value);
        mBPELServiceEngine.setVariable(fault,
                                       "invokeFaultGenerator_process_InputVariable",
                                       value);

        //Retry each fault
        mBPELServiceEngine.recoverFault(fault,
                                        FaultRecoveryActionTypeConstants.ACTION_RETRY,
                                        null);
      }

      //Instead of recover each fault individually, you can recover all faults in a single API call
      //mBPELServiceEngine.recoverFaults(faultList.toArray(new Fault[faultList.size()]), FaultRecoveryActionTypeConstants.ACTION_RETRY);


    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  public static void main(String[] args) {
    FaultRecovery faultRecovery = new FaultRecovery();
    faultRecovery.recoverFaults();
  }
}

To download this source code together with 2 SOA Composites to simulate a Business Fault, click here.

Treinamento Oficial de Oracle SOA Suite 11g

Entre 10 e 21 de maio estarei ministrando, na Fontoura Education (centro de treinamentos oficial da Oracle no RS), o treinamento Oracle SOA Suite 11g: Build Composite Applications. Este treinamento, que possui um total de 40h divididas em 10 noites, foi elaborado pela Oracle Education e estará sendo oferecido pela primeira vez no mercado gaúcho.

O conteúdo do treinamento é bastante amplo, iniciando por conceitos básicos de Service-Oriented Architecture (SOA) e Service Component Architecture (SCA) e passando por grande parte dos componentes e recursos da plataforma. É um treinamento que mistura uma parte expositiva, com exercícios práticos para aplicação do conteúdo apresentado, favorecendo a fixação do conhecimento.

O treinamento é indicado tanto para quem quer ingressar na tecnologia e plataforma, quanto para aqueles que já conhecem e utilizam a plataforma 10g e querem se atualizar com os novos conceitos e recursos da plataforma 11g.

Para mais informações ou para realizar sua inscrição, entre em contato diretamente com a Fontoura Education, pelo telefone +55 51 3392-2809 ou pelo e-mail vendas@fontouraeducation.com.br

BPEL and SCA

With the introduction of SCA model in SOA Suite 11g, a new question arises: What's the relationship between BPEL and SCA?

Today I found a very interesting article at Open SOA wrote by Mike Eduards, from IBM, that talks exactly about this topic: Relationship between SCA and BPEL.

It's not a new article (it was written 3 years ago), but is still a very good reference, especially for those who are learning the SCA concept right now with SOA Suite 11g.

Soa Suite 11g - Starting Managed Servers with Auto Login

Searching for some way to start Weblogic Managed Servers easier, without the need to inform username and password manually, I found an Oracle Install Configuration document that describes how to do that:

• At <DOMAIN_HOME>/servers/<MANAGED_SERVER_NAME>/security (create this folder, if it not exists), create a file with the name “boot.properties”
• Inside this file, create two properties:
• username=<Weblogic Admin Username>
• password=<Weblogic Admin Password>

After that, just start the managed server as usually, with startManagedWeblogic script. The script will identify the Boot Identity File and the server will be started without asking for username and password.

This is a good way to allow developers to start and stop the managed servers without let him the credentials. The first time the managed server starts, data inside the file will be replaced by encrypted information.

Reference:
Enabling Auto Login by Using the Boot Identity File

BPEL Console get stuck when try to show process tree

Yesterday, I was working together with the project team on a PoC implementation and, when we were testing the BPEL process, we started having some troubles.

After start some new instances, when we tried to view its Audit Trail or its Visual Flow, the new window that usually shows the process tree stayed loading for some time and, after that, showed the message "Unable to display Flowtrace and Faults due to an error while retrieving information from SOA, please review logs for more details".

Trying to find what could be happening, we found a thread of weblogic (at Environment > Servers > soa_serve1 > Monitoring > Threads) that remained executing for a long time and, after a defined timeout (600 sec), that thread got stuck. With some searches at Google and Metalink, we found an Oracle Doc (ID 972013.1 - EM Console Freezes when Viewing a Big Audit Trail in 11g) where a similar problem was described as a Bug (ID 9120676 - STUCK THREADS WHEN VIEWING AUDIT TRAIL IN 11G). As described by the Oracle Doc: "The problem comes during the UI rendering phase when we pre-expand audit trail tree nodes.It is hanging when iterating through recursive\nested 'while' loops for the tree pre-expansion.".

This issue is fixed in 11g PS2 - 11.1.1.3.0 (not available yet), but doesn't have a patch to the current version. As a workaround to view process audit trail and visual flow, you can do the following:

• Go to Enterprise Manager and Select the composite with the BPEL process you want to view.

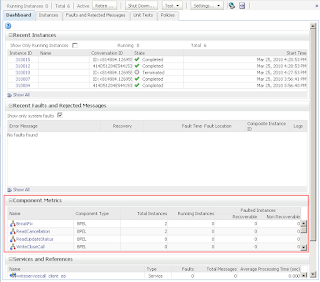

• Instead of click on instance id of the composite at "Collapse Recent Instances" portlet of the dashboard, that usually would open the process tree view,  search for your BPEL process at "Component Metrics" portlet of the dashboard and click on its name.

• The console will turn to the "Instances" tab ans will show just instances of the BPEL process, and not instances of the composite.

• Then, when you click on the instance id of a BPEL process instance, the new window will show the Audit Trail directly, instead of open the problematic process three view.

References:

• Document ID 972013.1 - EM Console Freezes when Viewing a Big Audit Trail in 11g
• Bug ID 9120676 - STUCK THREADS WHEN VIEWING AUDIT TRAIL IN 11G

Oracle BPEL 11g - Correlation Sets

Correlation Sets is as set of configurations that allow the process to receive messages during its execution even if the invoker doesn't have the Correlation ID necessary to indicate to the engine to which instance the message needs to be delivered. With Correlation Sets a group of business data can be used to inform the engine how to match the message received with the correct instance that is already in execution.

To understand correlation sets is necessary to know some main concepts:

• Property: like a variable, a property stores the information that will be used to match when a new message arrives.
• Property Alias: is used in two situations - as a assign, to define what information needs to be stored in the property, and as a query, to match the information received in a message with the information stored in the property.

Itens below is a step-by-step showing how to configure Correlation Sets:

1 - Create a new operation in the process interface, allowing it to receive a message during process execution

• Open the WSDL that describes BPEL service interface. Find messages and operations already defined.

• Create a new message and a new operation in the inbound PortType that uses the message created. You can use some data type already defined, define a new data type at the XSD file already imported by the WSDL or import any XSD to use a data type defined externally.

• Verify that the new operation is available at the process interface.

2 - Change the process to use the new operation during the process execution

• Open the BPEL process and add a new Receive activity in the middle of process execution. Before and after this Receive you may have as many activities as necessary. Point the new activity to the PartnerLink that represents the process interface.

• Select the operation defined previously on WSDL and create a new variable to store the message that will be received.

3 - Create and initialize the Correlation Set with business value that will be used to match the message that will be received

• Open the Receive activity that starts the process. Select the "Correlation" tab and click on "Create" button. Important: to initialize the Correlation Set you could use any Invoke or Receive activity before the Receive activity you will receive the message that you want to match.

• Define Correlation Set name and click on "Add" button.

• Choose the "input" field from "InputVariable". Click on "+" button right to "Property" field and define the name of the property that will store the input field value.

• Click "OK" once to confirm Property creation, again to confirm Property Alias creation and one more time to confirm Correlation Set creation. Change "Initiate" field to "yes". This will indicate to the engine that you want to initilize the Property with the field content defined by the XPath expression of the Property Alias.

4 - Match the incoming message

• Open the Receive activity that will receive the intermediate message. Select the "Correlation" tab and click on "Add" button.

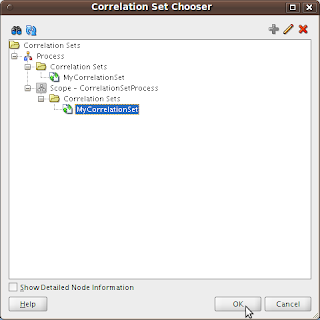

• Select the Correlation Set previously created and click on "OK".

• Select the Correlation Set added and click on "Edit" button.

• Select the Property of the Correlation Set an click again on "Edit" button.

• Choose the "input" field from Intermediate Receive's variable and click "OK". Then, click "OK" again to confirm the Correlation Set change. This will create a new Property Alias that matches intermediate message value received with the value stored in the Property initialized previously.

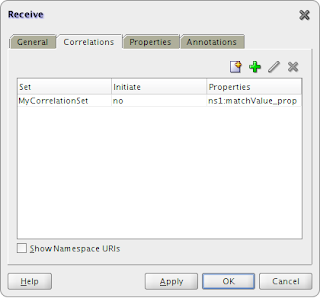

• This time, leave the "Initiate" field as default ("no"), because we don't want to change the property value. We just want to match its value with the value received by the Intermediate operation message.

With this configuration, BPEL engine can match business value stored in the property (initialized in the first Receive activity) with the the message value received by the Intermediate Operation and deliver the message for the correct running instance.

To download this sample, click here.

New project

This month I started a new project where all communication needs to be in english. Then, I'll try to make some posts in english to practice. I would like to apologize in advance if my english is not so good. I'll try to be better every day.

Primeiro post

Por muito tempo pensei em criar um blog para compartilhar os conhecimentos adquiridos durante estudos autônomos ou focados nas situações de trabalho que se apresentam, mas até hoje não tinha feito isto pois sempre achei que precisaria estruturar bem as coisas, desde o layout do site até o conteúdo a ser publicado.

Depois de muitas conversas com amigos e colegas, percebi que as preocupações com detalhes não tão importantes como o conteúdo me impediam de iniciar. Resolvi, então, iniciar este blog, mesmo que de maneira bastante simples, com o objetivo de registrar os conhecimentos para futuras referências minhas e de quem mais o conteúdo possa interessar.

Buscarei descrever aqui principalmente informações e dicas técnicas que forem adquiridas durante os estudos e trabalho com novas tecnologias, mas como o meu interesse vai além destes assuntos, é possível que se encontre aqui também postagens e referências sobre assuntos diversos, como mobilidade, gestão financeira, engenharia de software, sistemas operacionais, redes e tecnologias em geral.
